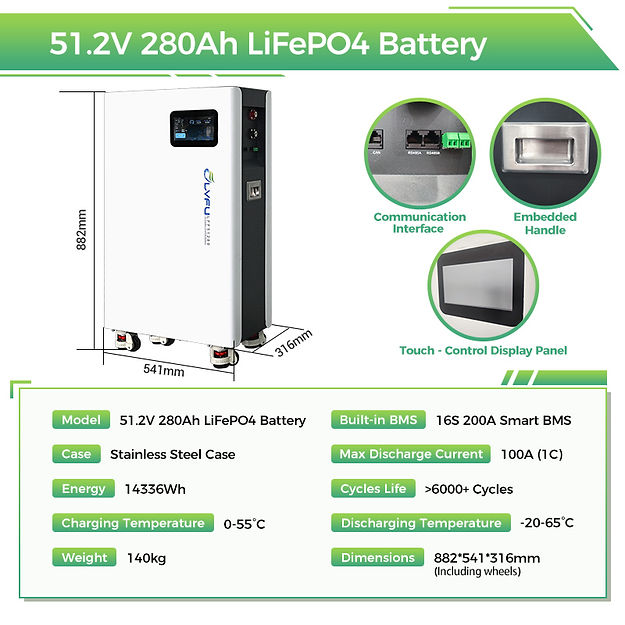

Rated battery energy: 14.336kWh
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 16 Parallel
Energy: 14336 Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
voltage range: 43.2-57.6V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 46.2V
Packing size: 940*610*500mm
Packaged weight: 160kg
Features:
Voltage Options: Available in 48V DC and 51.2V DC standard voltage.
Energy Efficiency: Boasting an impressive 98% efficiency at 0.5C, our LiFePO4 battery ensures optimal energy utilization.
Communication Protocols: Versatile connectivity options include CAN, RS485, RS232, WIFI, 4G, and Bluetooth for advanced monitoring and control.
Long Cycle Life: With a cycle life of 6000 cycles at 80% Depth of Discharge (DoD), our battery guarantees a reliable and extended lifespan.
Robust Protection: Equipped with comprehensive protection mechanisms, including over-temperature, over-current, short circuit, over-charging, over-discharging, and low voltage safeguards.

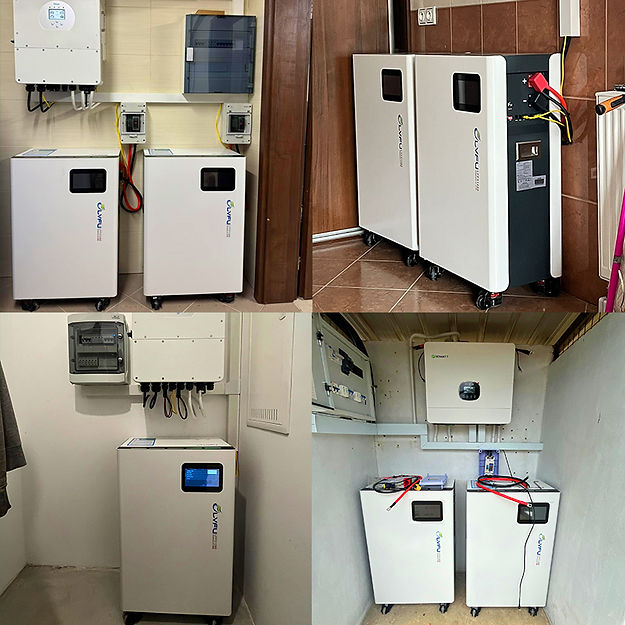

Mechanical Excellence: Industrial-grade iron construction ensures durability, and the Floor-standing design allows for easy installation in a cabinet.
